KEMPER Fume Extraction & Filtration

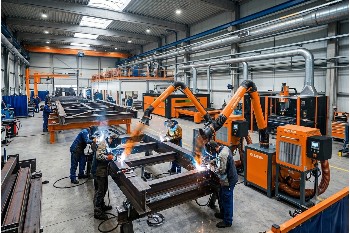

Founded 1977 | 70+ countries | 1500+ employees. KEMPER specialises in welding and cutting fume extraction, filtration systems, and industrial automation. Welding fumes contain superfine particles (0.1–1.0 micron) that cause asthma, lung cancer, and neurological disorders. Kemper systems remove these hazards at source, ensuring clean air and regulatory compliance (COSHH, OSHA, NIOSH).

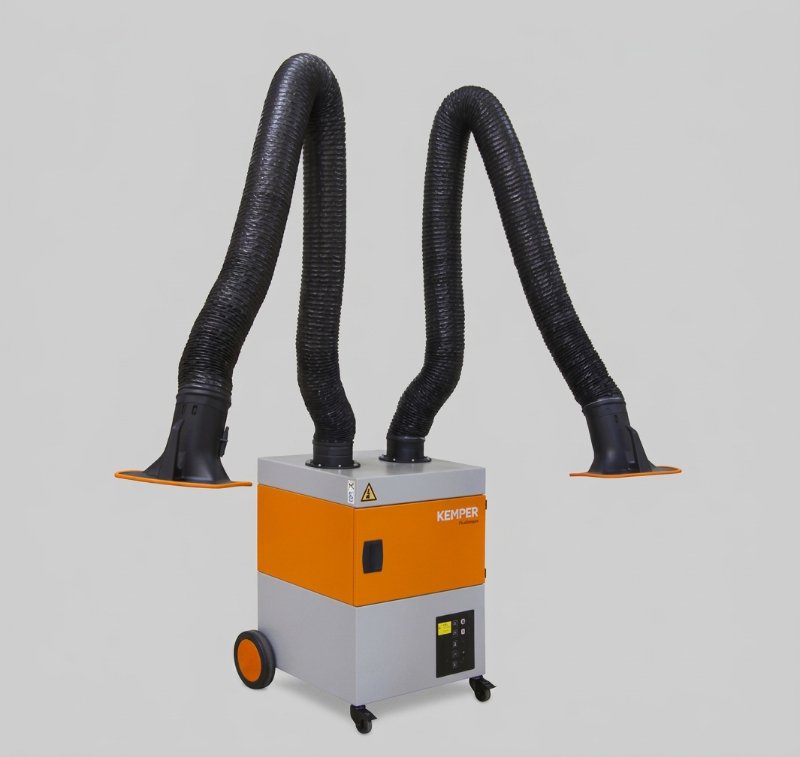

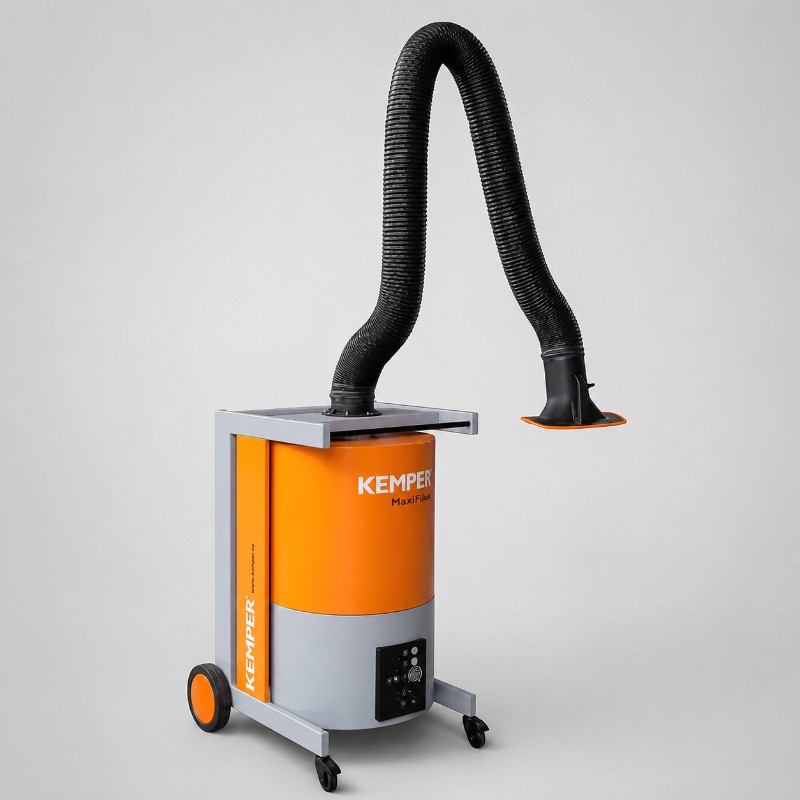

• Filter Master – Mobile Mechanical disposable filter, efficiency >99.9%, flexible extraction arm, 360° rotatable extraction hood, interior parallelogram support structure, optional control light, optional automatic start-stop function, mobile design for easy positioning, suitable for welding fumes and light dust.

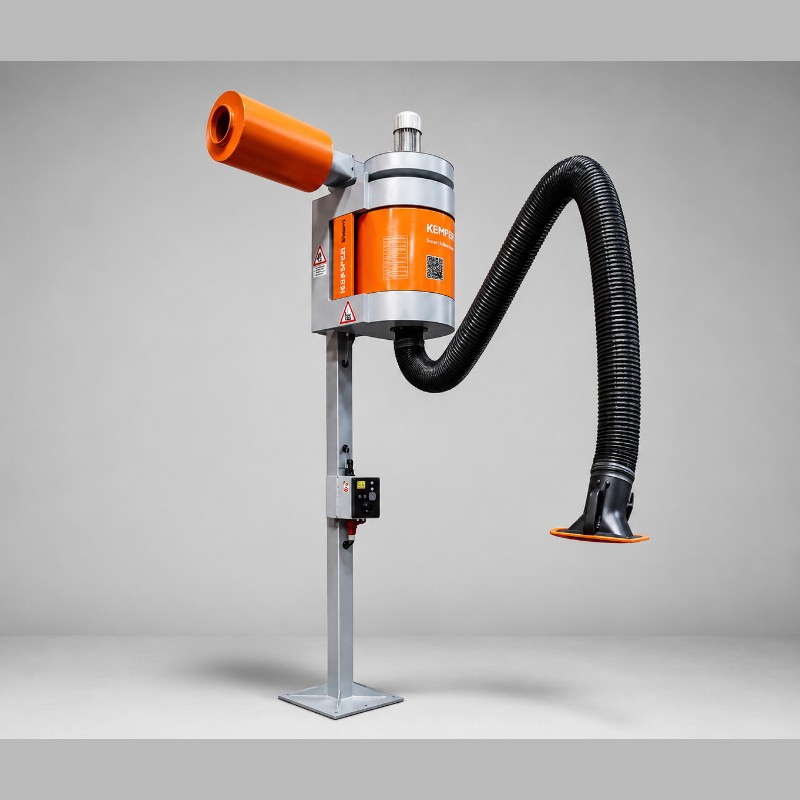

• Filter Master XL – Cartridge Filter with KempTex ePTFE membrane cartridge, self-cleaning technology, rotating cleaning nozzle technology, automatic cleaning cycle, continuous duty operation, long filter life, reduced maintenance requirements, efficiency >99.9%, suitable for heavy welding applications.

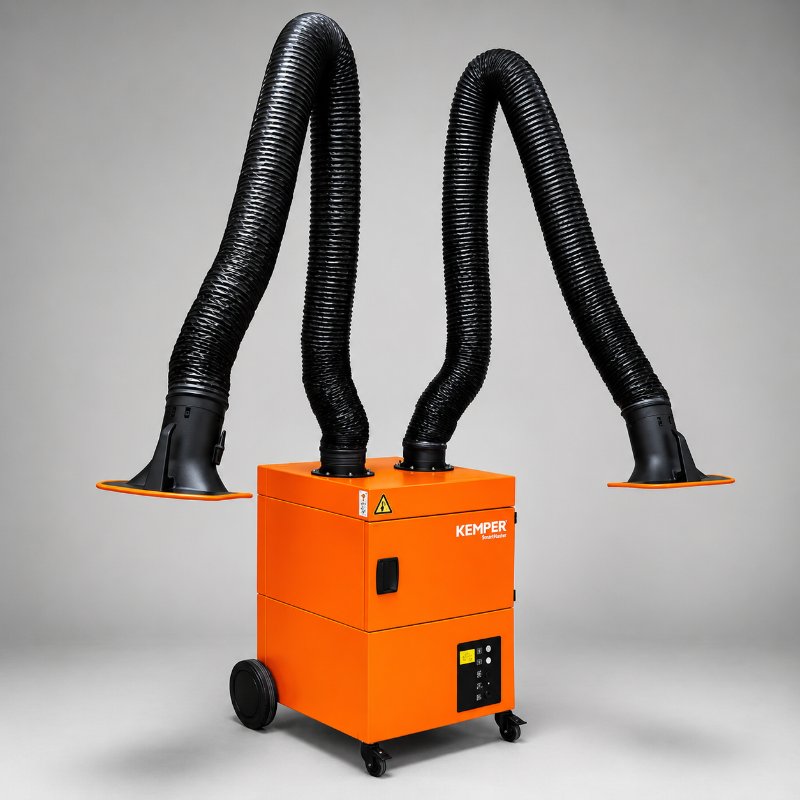

• Electrostatic Filter – Ionisation and purification process, multi-stage filtration with integrated spark trap, washable collection plates, no cartridge replacement required, low operating cost, long service life, suitable for continuous operation, efficiency >99.9%.

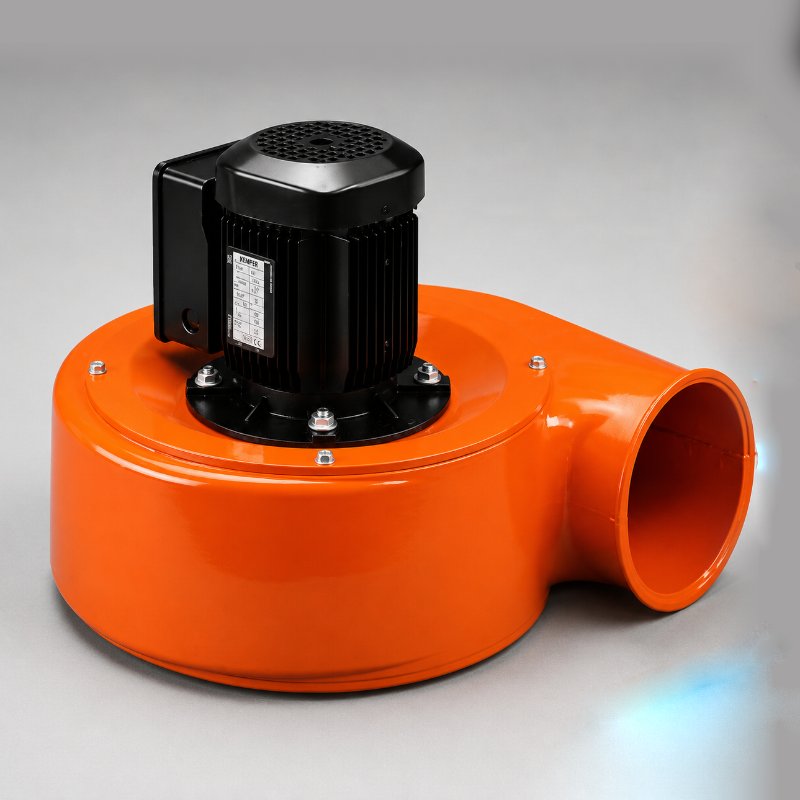

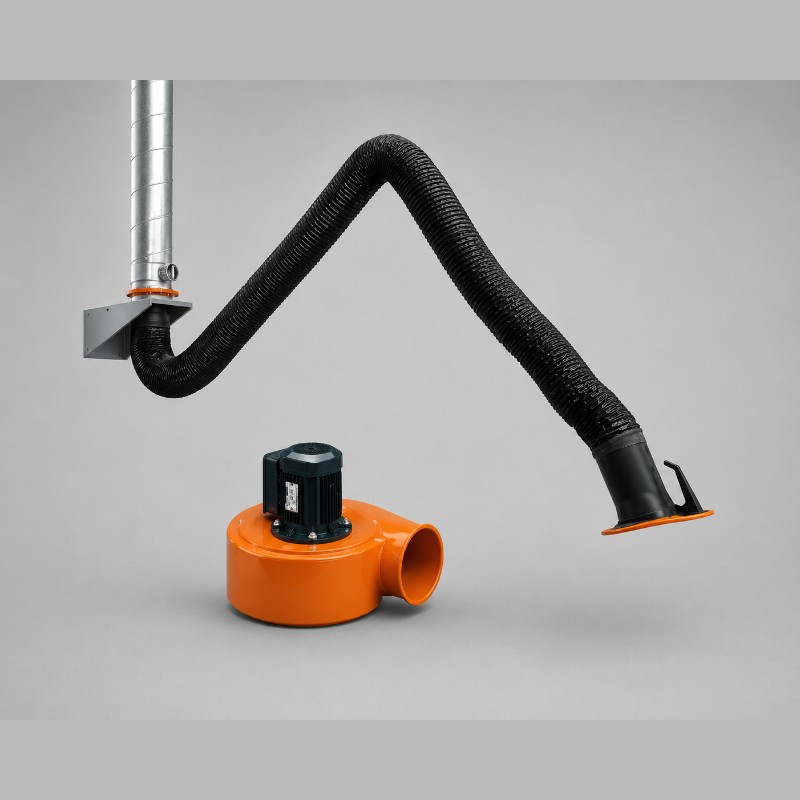

• Exhaust Fan – Suitable for high smoke and heavy dust environments, continuous non-stop operation, low noise design, low maintenance, energy efficient design, flexible extraction arm options, ideal where filtration is not essential.
• Twin exhaust arms option available on all units

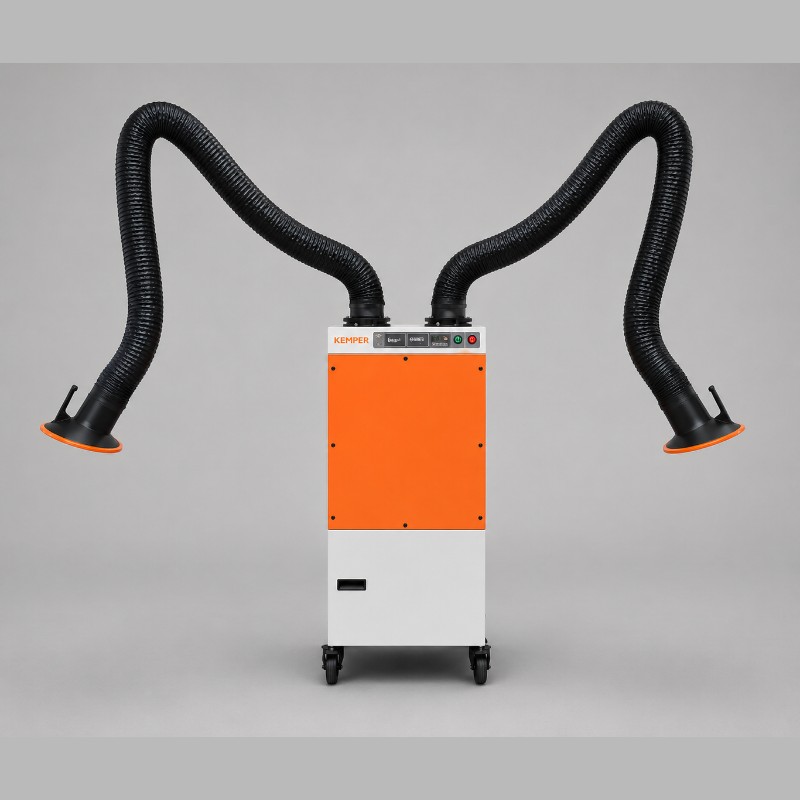

• Mobile Units – Compact, portable for multi-station use, ideal for 1–2 welding stations

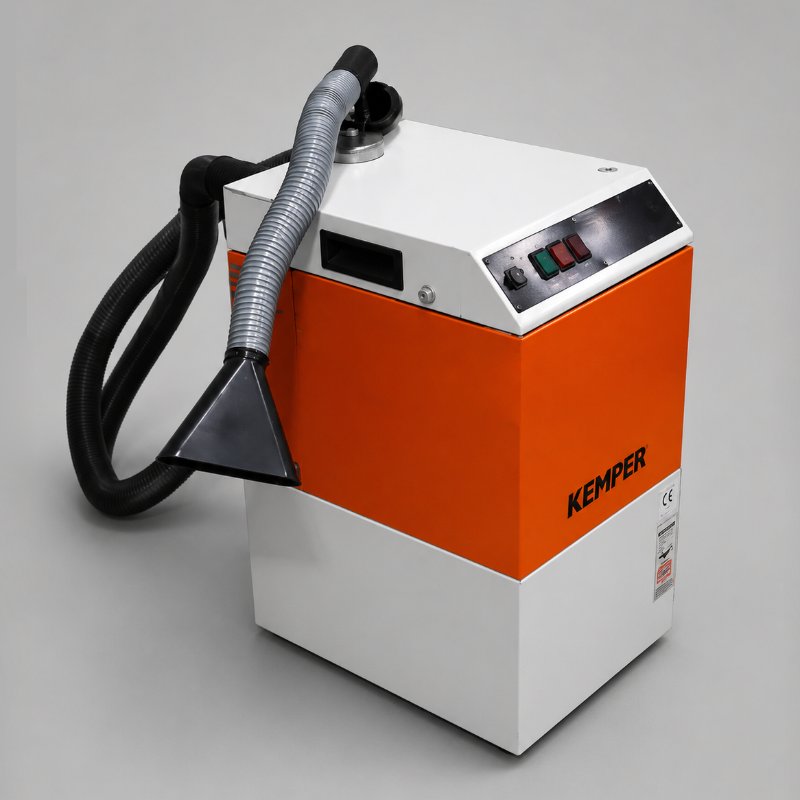

• Mini Weld Master – High vacuum extraction solution, suitable for 1–2 welding stations, mobile or stationary installation, compact and efficient design

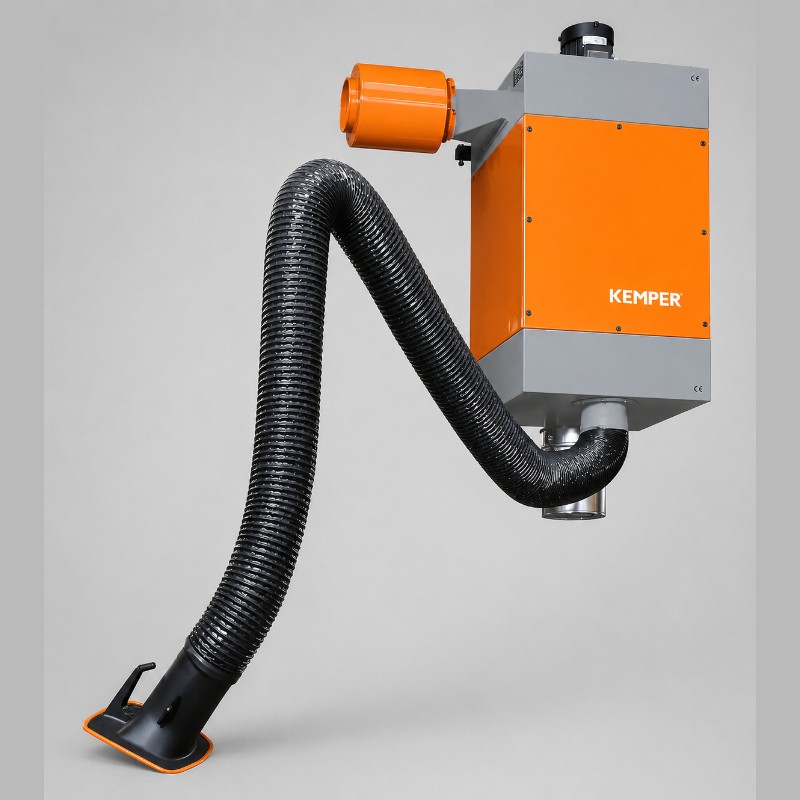

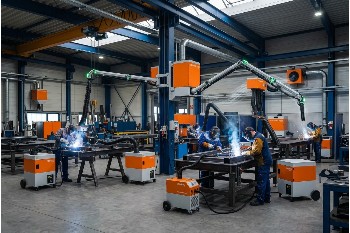

• Stationary Filters – Wall/column mounted, mechanical/electrostatic/cartridge options
• Extension cranes (5/6/7 mtrs from wall), twin arms, control lights available

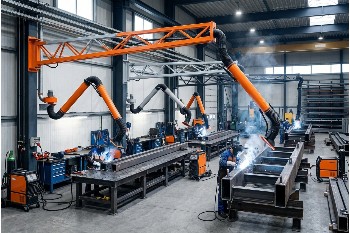

KEMPER extension cranes allow extraction arms to cover larger work areas without moving the extraction unit, significantly improving workstation accessibility and efficiency.

• 5 Meter Extension Crane
• 6 Meter Extension Crane
• 7 Meter Extension Crane

• Increased extraction coverage for large workpieces
• Flexible arm positioning across multiple workstations
• Improved workstation accessibility and operator freedom
• Reduced equipment movement and setup time

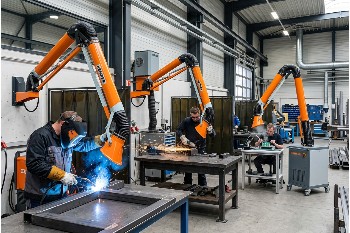

• Available in 2m, 3m and 4m lengths
• 360° rotation for maximum coverage
• Internal parallelogram support structure for stability
• Easy positioning with one-hand operation
• Low pressure loss design for higher suction
• Stable hood positioning without drifting
• High extraction efficiency at source

• Manual welding and fabrication
• Grinding and surface preparation
• Soldering and small component assembly
• Fume extraction directly at the source

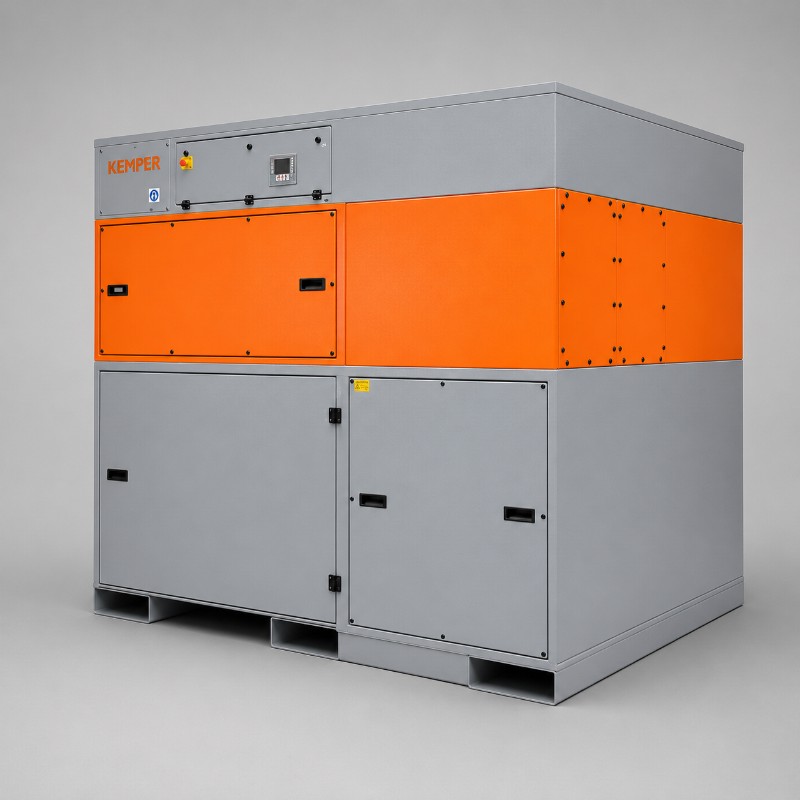

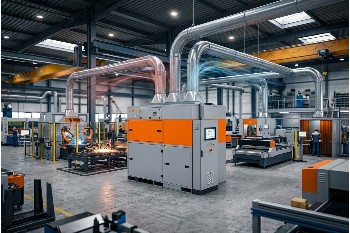

System 8000 is the heart of centralised fume extraction for large-scale industrial operations. It provides modular, scalable filtration for multiple workstations, welding robots, CNC plasma cutting machines, and duct networks.

• Modular Design – Scalable for facility expansion
• Built-in Fan – Integrated high-performance extraction
• M-Class Filtration – Self-cleaning technology
• Automatic Self-Cleaning – Pneumatic pulse cleaning system
• Siemens S7 Intelligent Controls – Advanced automation and diagnostics
• Digital Display – Real-time monitoring of all functions
• Heavy-duty Steel Structure – Rigid and durable construction
• ePTFE Laminated Cartridges – High-efficiency filtration media
• Filtration Efficiency >99.99% – Exceeds industrial standards
• Capacity up to 12,000 m³/hr – Handles large facilities
• Noise Level below 65 dB – Quiet operation

• Extraction Arms – Flexible source capture
• Welding Robots – Automated welding cells
• Plasma Cutting Tables – CNC cutting systems
• Laser Cutting Systems – High-precision cutting
• Push-Pull Ventilation Systems – Large workshop coverage
• Inlet-Outlet Grid Systems – Uniform air circulation

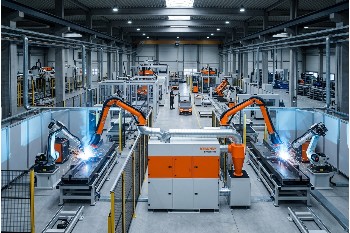

KEMPER extraction systems integrate seamlessly with robotic welding cells to capture fumes directly from automated welding processes, ensuring a clean production environment even in high-volume automation.

• Automated extraction synchronized with robot operation
• Improved production environment and equipment cleanliness
• Reduced operator exposure during monitoring and maintenance
• Fully compatible with System 8000 centralized filtration

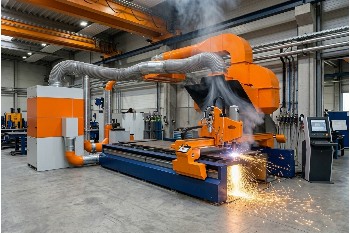

Specialized extraction solutions for CNC plasma cutting tables and thermal cutting operations where high volumes of fine particles are generated.

• High-volume smoke extraction specifically for thermal cutting
• Fine particle filtration with high-efficiency media
• Ducted extraction systems for precise capture
• Seamless integration with centralized filtration units

• Cleaner cutting environment and improved visibility
• Improved visibility for better cutting accuracy
• Reduced maintenance on CNC components and sensors
• Better operator safety and environmental compliance

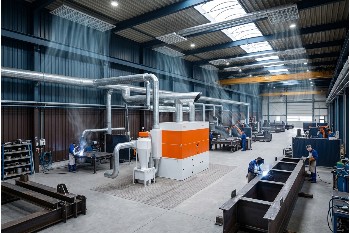

The Push-Pull ventilation system is designed for large welding and fabrication facilities where source capture alone is not sufficient. It combines the System 8000 filter unit with strategic Inlet-Outlet Grid Systems to cover large workshop areas.

• Fresh air enters through strategically placed inlet grids
• Contaminated air is pulled toward extraction grids by powerful suction
• System 8000 filters the air and recirculates clean air back into the shop
• Creates a controlled, uniform airflow throughout the entire workshop

• Uniform workshop ventilation – No “dead air” zones
• Large area coverage – Ideal for fabrication of massive components
• Reduced dead air zones and consistent air quality
• Improved overall air quality and indoor climate control

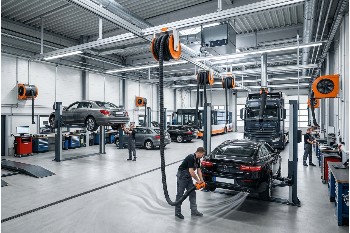

KEMPER vehicle exhaust extraction systems safely remove hazardous engine exhaust gases from workshops, service centers, and maintenance facilities. These systems protect workers from toxic fumes while maintaining a clean, healthy work environment.

• Flexible hose systems – Easy installation and repositioning
• Efficient exhaust gas removal – Complete fume capture
• Improved workplace safety – Protects worker health
• Suitable for automotive workshops – Professional-grade extraction

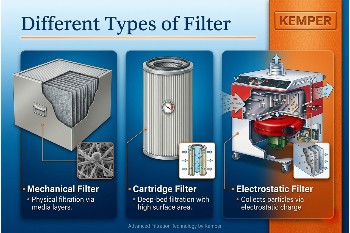

• Reliable particulate filtration for general welding applications
• High efficiency removal of welding fumes and dust
• Cost-effective solution for standard filtration needs

• Self-cleaning technology – Automatic pulse cleaning
• ePTFE membrane filtration – Superior efficiency >99.9%
• KempTex membrane – Durable and reliable performance
• Pneumatic cleaning using rotating nozzles

• Ionization and purification process – Advanced technology
• Washable filter plates – Reduced operating costs
• Manual cleaning with water – Simple maintenance
• Efficiency >99.9% – Meets highest standards

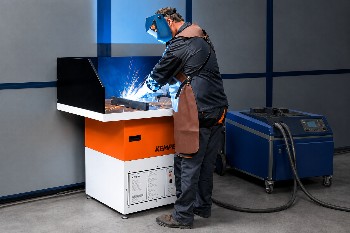

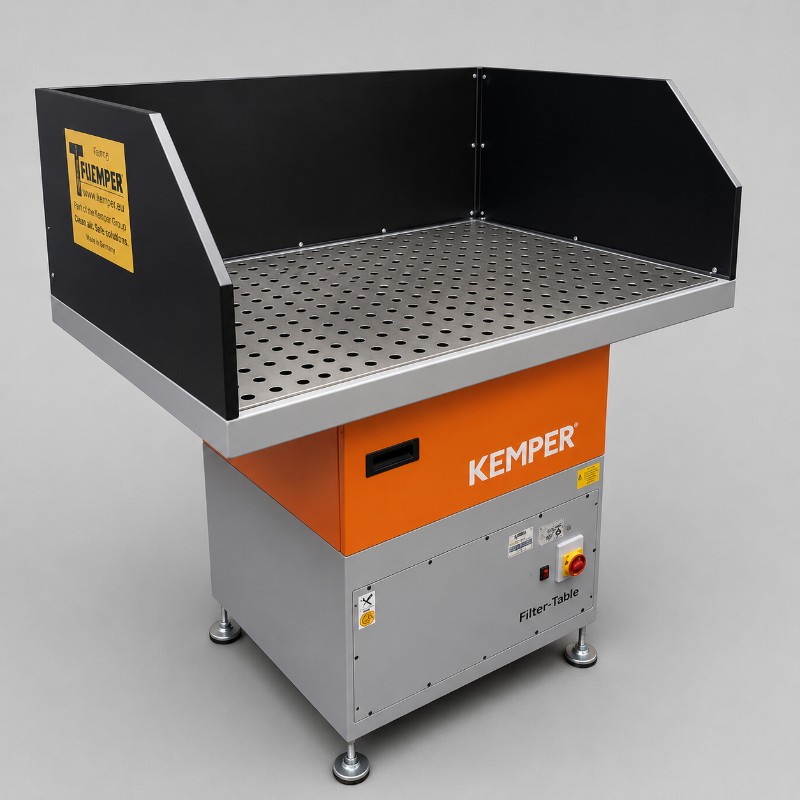

Integrated welding workbench with built-in fume extraction through perforated surface. Ideal for smaller components, training workshops, and manual welding cells. Source capture technology removes fumes directly at the point of generation.

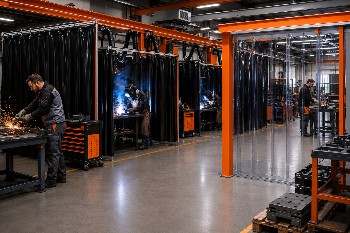

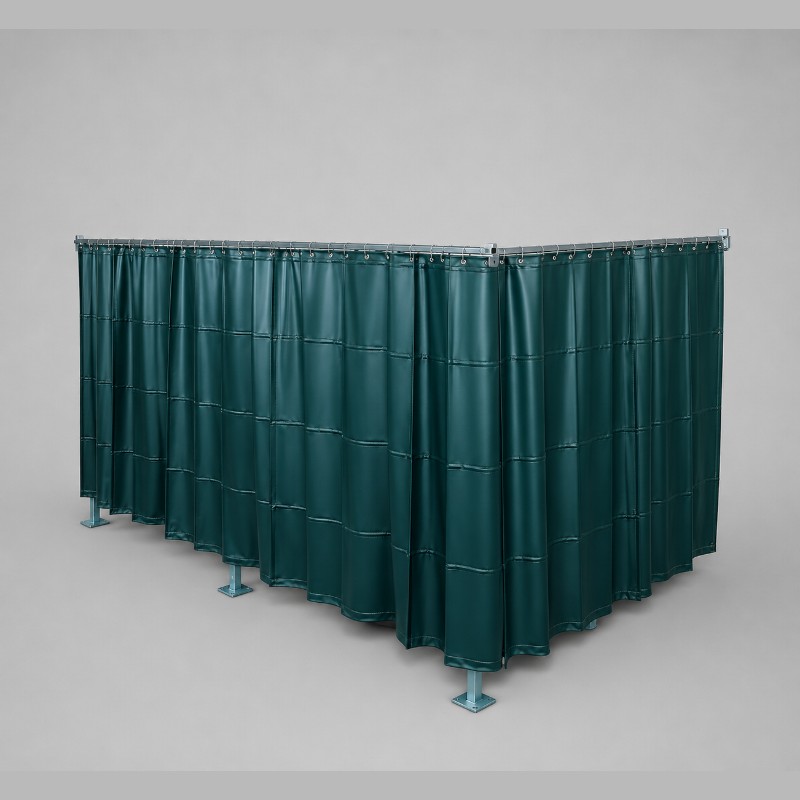

• Protective welding curtains – UV/IR radiation shielding, spark protection, flexible partitions

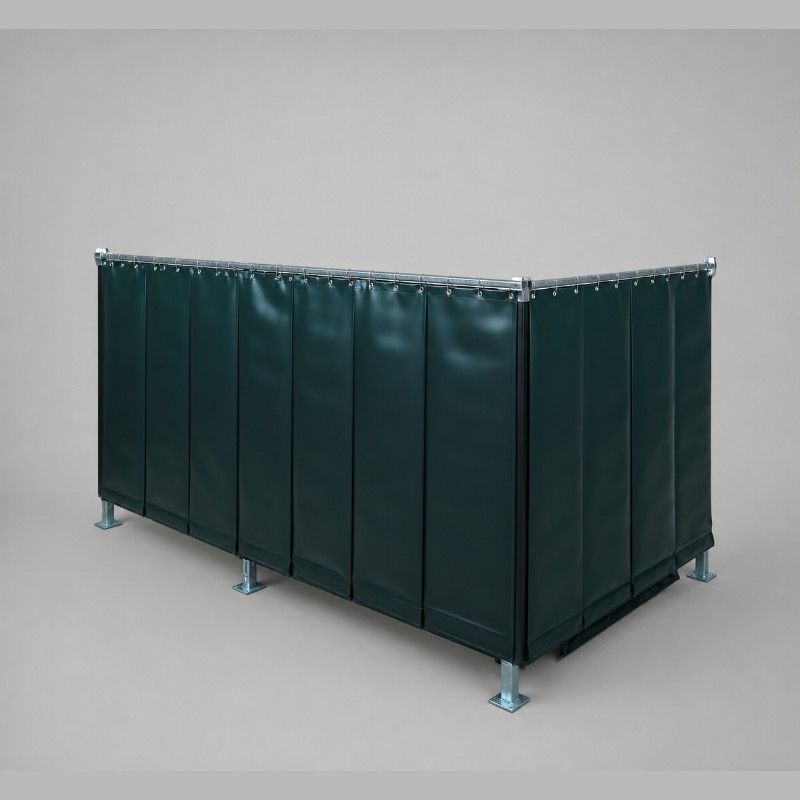

• PVC strip curtains – Transparent, dust-resistant, temperature control
• Improve safety and compartmentalise welding areas
• Shield nearby workers from arc radiation and sparks
